When it comes to protecting critical assets, nothing comes close to FK-5-1-12 agent
Using water as a fire suppressant in areas where electronics operate and irreplaceable high-value assets are stored could be as devastating as fire itself. Protect them instead with an FK-5-1-12 agent system, custom-engineered to quickly suppress fires and protect sensitive equipment without causing harm to people or the environment.
The Difference is Crystal Clear

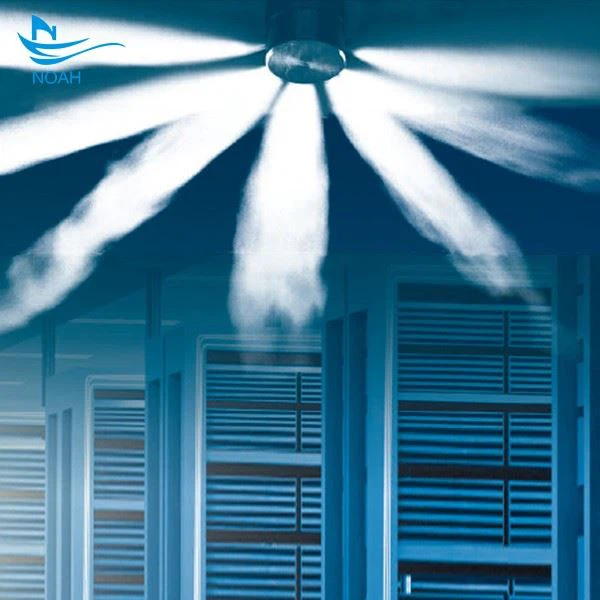

The heart of the system is revolutionary FK-5-1-12 agent, a clear, colorless and odourless clean agent. Stored in cylinders in its fluid form, FK-5-1-12 agent instantly vaporizes upon discharge, totally flooding protected spaces and absorbing heat better than water. The FK-5-1-12 agent system suppresses a fire before it can start by detecting it at invisible levels. And once the danger has passed, FK-5-1-12 agent quickly evaporates without harming any valuable assets.
Safe For People
Because it is used at concentrations of only 5.3% to 5.8% by volume, well below the 10% concentration maximum for safe exposure, FK-5-1-12 agent provides the widest safety margin of any chemical clean agent available today. In accordance with ISO 14520 part 5, FK-5-1-12 agent is safe for occupied spaces.
Safe For The Planet
An ozone depletion potential (OPD) of zero, a global warming potential (GWP) of one and a five-day atmospheric lifetime (the next closest product is 33 years) makes FK-5-1-12 agent the cleanest, most environment-friendly chemical agent in existence.
Physical properties of Noah®5112:
Molecular mass | 316.045 |
Boiling point at 1atm | 49.2℃ |
Freezing point | -108℃ |
Critical temperature | 168.7℃ |
Critical pressure | 18.65 Bar |
Critical density | 639.1 kg/m3 |
Heat of vaporization at boiling point | 88.0 kJ/kg |
Liquid Viscosity @25℃ | 0.524 cp |
Solubility of water in Noah5112 @25℃ | <0.001 wt% |
Specific heat，liquid@25℃ | 1.013 kJ/kg ℃ |
Specific heat capacity at room temperature@25℃,1atm | 0.0733m3/kg (1.175ft3/lb). |
Saturated liquid density（25℃） | 1.60 g/ml |
Vapor pressure（25℃） | 0.404 bar |
Insulating property (110k) | 3.8mA (Standard leakage current≤10mA) |
Dielectric strength (kV) | 74.6 kV (Test distance 3mm) |
ODP | 0 |
GWP | 1.0 |
ALT(year) | 0.014 |
◆Certificate:
◆UL listed
◆REACH registration; K-REACH (for South Korea)
◆FM Approved
◆Advantages:
Excellent environmental protection performance | Noah®5112 meets the most stringent international environmental regulations |
High fire-extinguishing efficiency | Minimum extinguishing concentration: 3.5% for Type A fire, 4.5% for Type B fire |
Safe to use | The extinguishing concentration is much lower than (NOVAL), large safety margin |
Good electrical insulation | Noah®5112 has a dielectric strength up to (3mm) 74.6KV and has passed the electrical insulation performance test of 110kV |
Good cooling performance | Noah®5112 has a unique cooling effect after discharge |
No residue after use | Noah®5112 volatilizes quickly after use, which will not cause damage to precision instruments, antique calligraphy and paintings |
Atmospheric storage, convenient and safe transportation | Noah®5112 is liquid at room temperature, easy for filling, transportation and storage, also transported as normal cargo |
◆Typical application:
Noah®5112 fluid can effectively be applied in total and localized flooding, inerting and explosion suppression applications in the following areas:
• Anechoic chambers
• Data centers/Server rooms
• Laboratories
• Marine vessels
• Medical records storage
• Military
• Museums and archives
• Oil and gas
• Paint rooms
• Power generation and power storage
• Telecommunications
• Transportation
